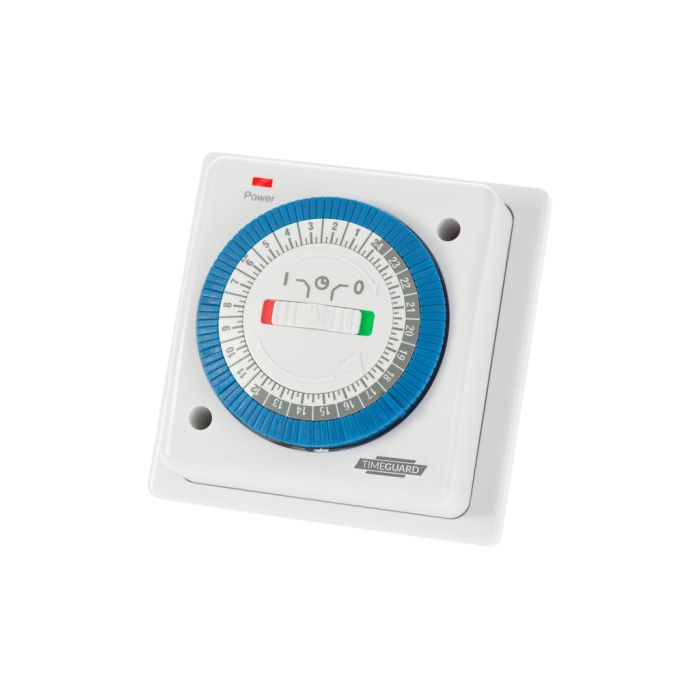

24 Hour Compact General Purpose Timeswitch with Voltage Free Contacts
£29.99
96 Quick-Set Segments for up to 48 ON/48 OFF Programmes Per 24 Hrs,
Red LED ‘Mains ON’ indicator for easy viewing,
‘Traffic Light’ Slide Switch for Easy ON (green), Auto (green + red) and OFF (red) Mode Indication,
Switches ON and OFF at Preset Times,
Easy to use captive segment dial,
Permanent ON/OFF control,
Fits a standard flush or surface mount box min 32mm,
Voltage Free Contacts.
- Important InformationPOP INTO OUR STORE OR CALL US ON 01584 810 286 TO ORDER
Operating Voltage 230V AC
Frequency 50Hz
Earth Class Rating Class II
Operating Temperature 0°C to 40°C
Voltage Free Contacts Normally Open
Mounting Hole Centres (mm) 60
Standby Consumption <1.43W
Dimensions Height 92mm, Width 92mm, Depth 60mm
Frequency 50Hz
Earth Class Rating Class II
Operating Temperature 0°C to 40°C
Voltage Free Contacts Normally Open
Mounting Hole Centres (mm) 60
Standby Consumption <1.43W
Dimensions Height 92mm, Width 92mm, Depth 60mm
| Manufacturer | Timeguard |
|---|---|
| Model Number | NTT02 |
| Description4 | POP INTO OUR STORE OR CALL US ON 01584 810 286 TO ORDER |
| Certification Name (Hide) | EPREL |
| Certification Authority (Hide) | EC or European_Commission |
| Is Soft Bundle | No |
| Is On Display | false |
| Expired Status | No |
